Gear Flowmeters
Gear Flowmeters
Gear flow transmitter belongs to a kind of volumetric flow transmitter and can be used for measuring volume and flow precisely. The measuring element consists of two high precision toothed oval gears, which are driven by the flow of the medium and mesh with each other. It is particularly suitable for the measurement of heavy oil. Flow measurement of media with high viscosity such as vinol and resin. (It can be used for measuring the fluid the viscosity of which is as high as 10,000 Pa.s) with the characteristics of small volume, light weight, small operation noise and stable operation. It can also be used for measuring the micro flow of small pipe diameter. With small startup flow and broad range ratio, it is applicable to the measurement of liquid flow with significant change and its measurement precision is not affected by either pressure or flow change. It is stable in performance, long in service life and large in circulation capacity.
Types:

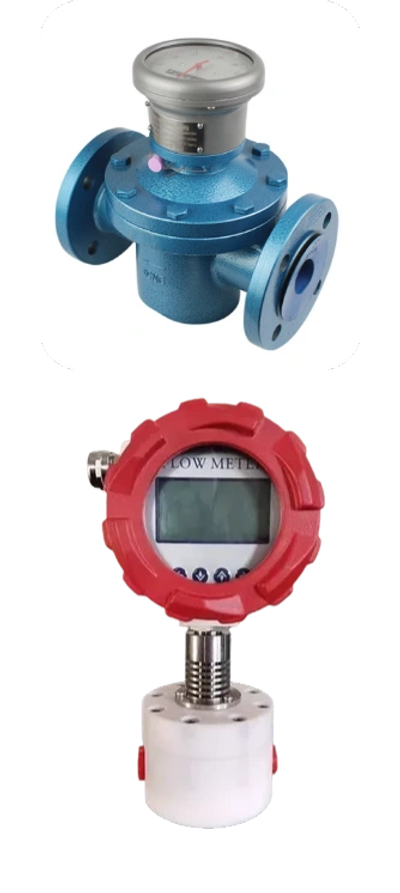

- Micro Oval Gear Flowmeter - MICROFLOW 3000
- Oval Gear Flowmeter - OVALPRO 3000
MICROFLOW 3000
Micro Oval Gear Flowmeter - MICROFLOW 3000
Oil flowmeters
- For very low flow liquid applications, able to measure different kinds of viscous media
- Size: DN02 ~ DN32
- Temperature: -15 ~ 80 deg. C
- Max. Pressure: 150 bar for Aluminum Alloy; 400 bar for Stainless Steel
- Accuracy: +0.5%(range: 1: 10), +1.0%(range: 1: 100)
- Texture: SS, Aluminum Alloy, PP
- Impulse output/Analog output available
- Connection: Thread, Quick Hoop, Cutting Sleeve
- Sealing: FKM, PP
- Strong corrosion and pollutant resistance (acid)
- Applications: Measurement of resin and glue, hydraulic oil, lubricating oil and grease, fuel oil, printing ink and asphalt, liquid nitrogen, refrigerant and solvent, edible oil, fish oil and food canning, fluid quantitative control system

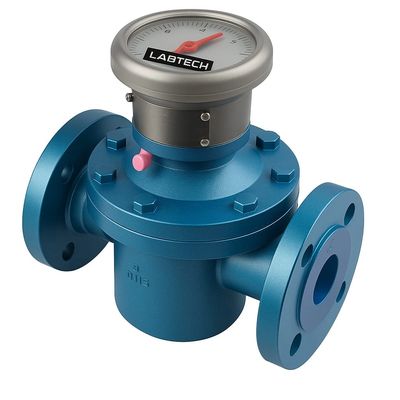

OVALPRO 3000
Oval Gear Flowmeter - OVALPRO 3000
Diesel flowmeter
- Size: DN10 ~ DN200
- Transmitter Type: Analog/Digital
- Temperature: -20 ~ 100 deg. C
- Accuracy: +0.2%; +0.5%
- Material: Ordinary Cast Iron, Steel type, SS
- Stainless steel flow meter for 98% sulfuric acid, 60% nitric acid, 50% liquid caustic soda and other chemical measurement.
- Applicable to all types of liquid measurements - Crude oil, Diesel , petroleum, chemical, pharmaceutical, food, metallurgy, electricity, transportation and other fields of liquid flow measurement.
