Product Category
Level Transmitters
Radar, ultrasonic, guided wave, hydrostatic, and magnetostrictive level transmitters for accurate, continuous level measurement in tanks, vessels, silos, and open channels across all process industries.
Precision Level Measurement for Every Process
Labtech Electronics manufactures a comprehensive range of level transmitters and sensors for continuous and point-level measurement in liquids, slurries, powders, and bulk solids. Our instruments are engineered for demanding process conditions — from cryogenic storage tanks and high-pressure reactors to open channels and municipal water reservoirs.
Every Labtech level transmitter is designed for easy installation, minimal maintenance, and long-term reliability. With outputs including 4–20mA, HART, Modbus, PROFIBUS, and Foundation Fieldbus, our instruments integrate seamlessly into any DCS, SCADA, or PLC-based control system.
Level Measurement Technologies

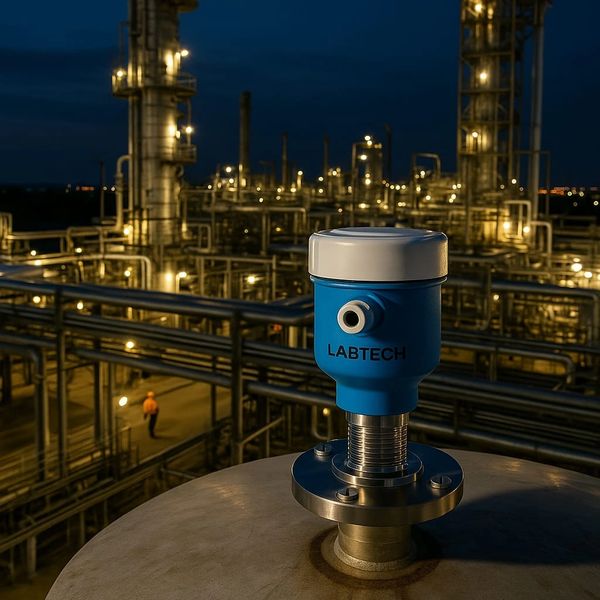

Radar Level Transmitters
Non-contact FMCW and pulse radar transmitters for liquids and solids. Unaffected by vapour, foam, dust, or temperature changes — ideal for challenging process conditions in tanks and silos.
- Range: Up to 70 m (liquid), 50 m (solid)
- Accuracy: ±2 mm
- Frequency: 26 GHz (FMCW) / 6 GHz (pulse)
- Process temp: –40°C to +250°C
- Output: 4–20mA/HART, Modbus, PROFIBUS PA

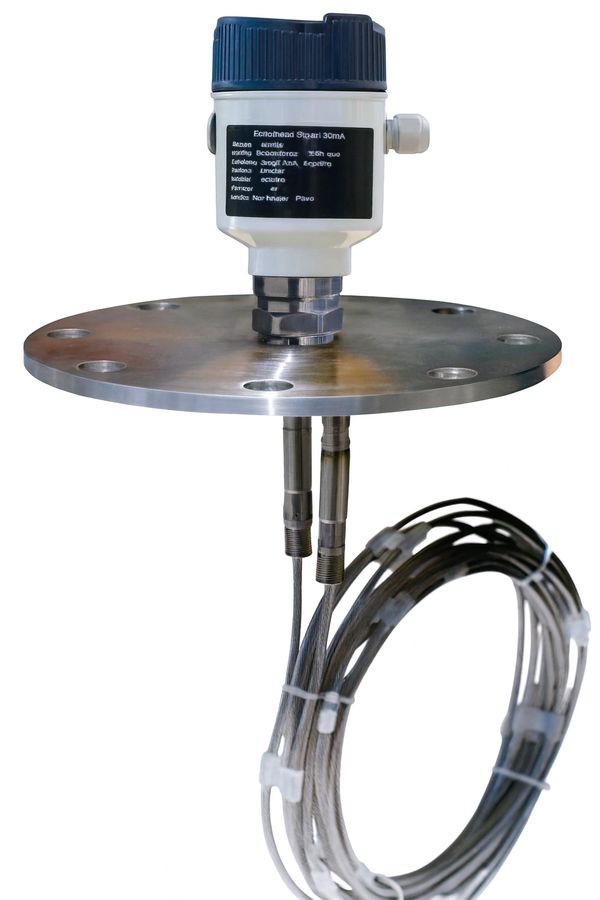

Guided Wave Radar (GWR)
TDR-based guided wave radar for liquids, interfaces, and viscous media. Probe-guided microwave pulses ensure reliable measurement even in turbulent, foamy, or low-dielectric media.
- Range: Up to 45 m
- Accuracy: ±3 mm
- Probe types: Single rod, twin rod, coaxial, rope
- Process pressure: Up to 400 bar
- Interface measurement: Liquid–liquid detection

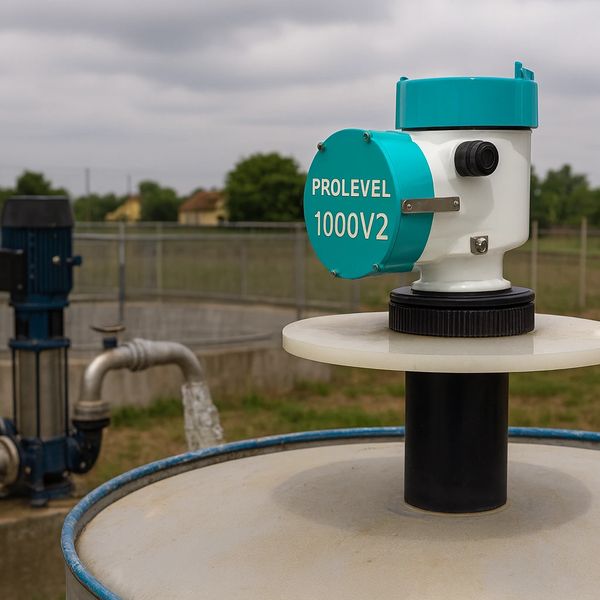

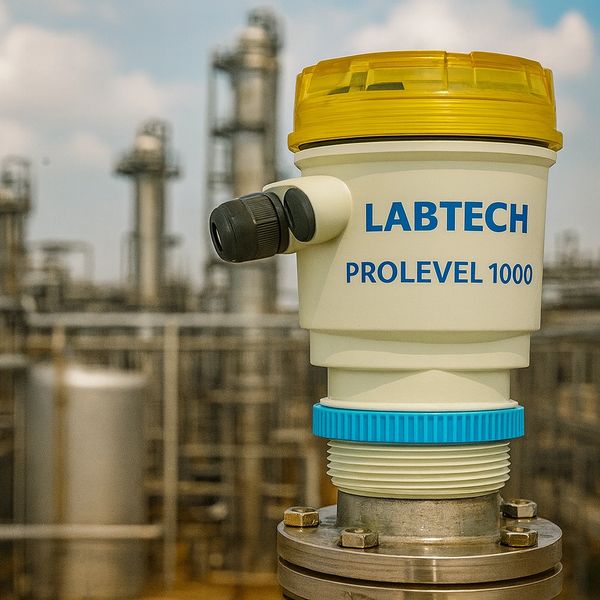

Ultrasonic Level Transmitters
Non-contact ultrasonic sensors for liquids and open channels. Cost-effective solution for water, wastewater, and non-aggressive chemical storage with automatic temperature compensation.
- Range: 0.3 m to 15 m
- Accuracy: ±0.25% of range
- Beam angle: 8° to 12°
- Blind zone: 250 mm (standard)
- Output: 4–20mA, Modbus RTU, relay

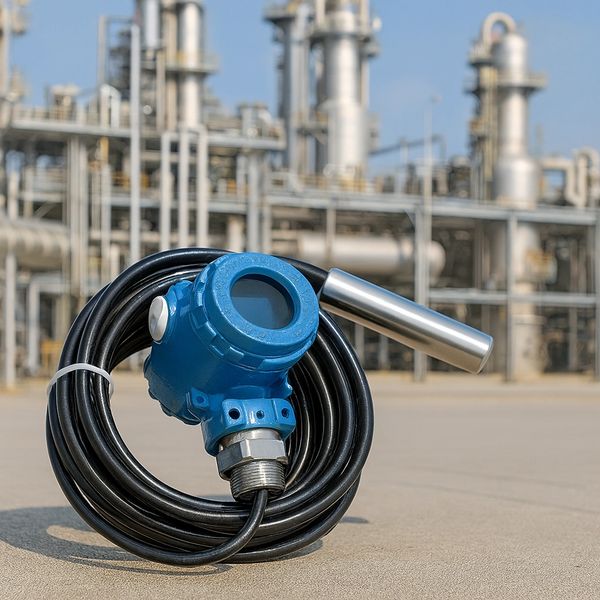

Hydrostatic Level Transmitters
Submersible and flange-mounted hydrostatic pressure sensors for liquid level measurement in open tanks, wells, rivers, and underground storage. Robust stainless steel construction.
- Range: 0–1 m to 0–250 m WC
- Accuracy: ±0.1% FS (standard), ±0.05% FS (high accuracy)
- Material: 316L SS, Hastelloy, titanium options
- Cable: Vented or sealed, up to 200 m
- Output: 4–20mA, HART, 0–5V, 0–10V
Magnetostrictive Level Transmitters
High-accuracy magnetostrictive sensors for precise level and interface measurement in custody transfer, fuel storage, and pharmaceutical applications where ±1 mm accuracy is required.
- Range: Up to 6 m
- Accuracy: ±1 mm
- Resolution: 0.1 mm
- Float: Stainless steel, PVDF, PTFE options
- Output: 4–20mA/HART, SSI, Modbus, Profibus
Point Level Switches
Vibrating fork, float, conductivity, and capacitance point level switches for high/low level alarms, pump protection, and overfill prevention in liquids, slurries, and granular solids.
- Technologies: Vibrating fork, float, capacitance, conductivity
- Process temp: –50°C to +280°C
- Process pressure: Up to 100 bar
- Output: SPDT relay, NPN/PNP transistor
- Certifications: ATEX, IECEx, SIL 1/2 rated
Industry Applications
Labtech level transmitters are trusted across a wide range of industries for continuous, reliable level measurement in the most demanding process conditions.
Oil & Gas Storage
Custody transfer tank gauging, floating roof tanks, and separator level control in upstream and downstream facilities.
Water & Wastewater
Reservoir and sump level monitoring, pump station control, and open channel flow measurement.
Chemicals & Petrochemicals
Corrosive liquid storage, reactor level control, and interface measurement in distillation columns.
Food & Beverage
Hygienic level measurement in storage silos, mixing vessels, and CIP-compatible process tanks.
Power Generation
Boiler drum level, condenser hotwell, fuel oil storage, and cooling tower basin monitoring.
Pharmaceuticals
Sterile vessel level measurement, WFI tank monitoring, and clean-in-place compatible installations.
Certifications & Approvals
Need a Level Measurement Solution?
Our application engineers will specify the right level transmitter for your tank geometry, process conditions, and safety requirements.
