Mass Flowmeter
A mass flow meter, also known as an inertial flow meter or coriolis flow meter, is a device that measures mass flow rate of a fluid traveling through a tube. The mass flow rate is the mass of the fluid traveling past a fixed point per unit time.
The mass flow meter does not measure the volume per unit time (e.g. cubic meters per second) passing through the device; it measures the mass per unit time (e.g. kilograms per second) flowing through the device. Volumetric flow rate is the mass flow rate divided by the fluid density.
Types:
- Digital Mass Flowmeter/Controller - MICROMASS 1000AC1
- MEMS Gas Mass Flowmeter - MICROMASS 1000AC2
- Micro Thermal Gas Mass Flowmeter - MICROMASS 1000AC15
- Turbine Gas Flowmeter - MICROMASS 4000
- Thermal Mass Flowmeter - MICROMASS 5000
- Coriolis Mass Flowmeter - MICROMASS 6000
MICROMASS 1000AC1
Digital Mass Flowmeter/Controller - MICROMASS 1000AC1
- Accuracy: ±1% F.S
- Linear analog output
- Preheating time, small zero drift, high reliability
- Digital signals can be controlled and displayed by computer.
- Flow range: 0-300SLM .
- Applications: Gas flow measurement/control, gas preparation, fuel cell, medical equipment, atmospheric detection, glass industry, vacuum coating, analysis instrument
MICROMASS 1000AC2
MEMS Gas Mass Flowmeter - MICROMASS 1000AC2
- Accuracy: + 2.0, +0.2 (FS)
- Range: 0-200 LPM
- Medium Temperature: -10 ~ 55 deg. C
- Max. Working Pressure: 1.0 Mpa
- Pressure loss: 2000 or less(Pa)
- Humidity: <95%(no frost, no icing)
- Power: 15 - 24V DC
- Output: 4-20mA/Pulse/RS485
- Application: low flow gas applications
- Low cost, easy installation, no need for temperature and pressure compensation, and can replace traditional displacement or differential pressure flowmeters.
- It can be equipped with a micro manual regulating valve to adjust the size of the flow . The regulating valve is made of 304 material and the working pressure can reach 5MPA.
MICROMASS 1000AC15
Micro Thermal Gas Mass Flowmeter - MICROMASS 1000AC15
- Accuracy: + 1.5, +0.2 (FS)
- Range: DN8：50m ~ 10LPM; DN10：0.3 ~230LPM
- Medium Temperature: -10 ~ 55 deg. C
- Max. Working Pressure: 1.0 Mpa
- Pressure loss: 2000 or less(Pa)
- Humidity: <95%RH(no frost, no icing)
- Power: 15 - 24V DC
- Output: 4-20mA/Pulse/RS485
- The zero point stability of the sensor is greatly improved compared with the ordinary thermal flow meters.
- It can be equipped with a micro manual regulating valve to adjust the size of the flow . The regulating valve is made of 304 material and the working pressure can reach 5MPA.
MICROMASS 4000
Turbine Gas Flowmeter - MICROMASS 4000
- Accuracy: ± 1.5% R (± 1% r to be specially made)
- Range ratio: 1：10；1：20；1：30
- Size: DN25 ~ DN300 Flanged; DN25 ~ DN50 Threaded
- Medium: No impurity, Medium and Low flow gas
- Medium Temperature: -20 ~ 80 deg. C
- Humidity: 5% ~ 90%
- It can detect the temperature, pressure and flow of the measured gas, automatically track and compensate the flow, and display the gas flow under the standard state; it can query the temperature, pressure, time, date and other data in real time
MICROMASS 5000
Thermal Mass Flowmeter - MICROMASS 5000
- For various gases (except acetylene gas)
- Flow rate range: 0 ~120 Nm/s
- Type: Plug-in Type(Sleeve + ball valve, flange);Pipe Segment Type(Flange, threaded)
- Temperature: -40℃ ~ +100℃; -40℃ ~ +200℃; -40℃ ~ +450℃; -40℃ ~ +510℃;
- Accuracy: + 1% of reading, + 0.5% of full scale
- Pipe Material: Glass, Stainless Steel, Plastic
- Sensor material: SS, CS
- Output signal: 4-20mA/RS485
- Applications: Oxygen, nitrogen, hydrogen, chlorine and multi-component gas measurements, blast furnace gas, coke oven gas measurement, flue gas, aeration and chlorine measurement in biogas and water treatment, compressed air, natural gas, liquified gas, flare gas, flow measurement of underground ventilation or exhaust system.
MICROMASS 6000

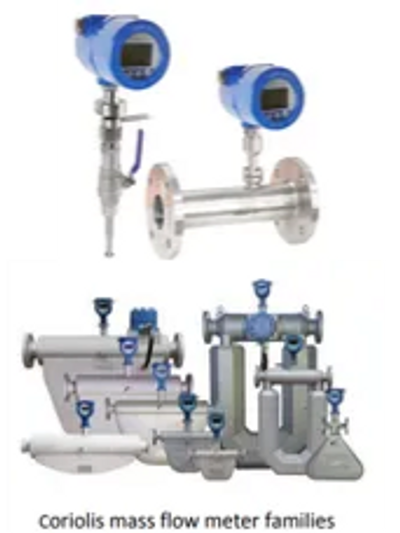

Coriolis Mass Flowmeter - MICROMASS 6000
- Type: U type - Super bend sensor; M type - Micro bend sensor; S type - Super bend sensor
- Size: U type - 1.5"to 8";M type - 1/8"to 12";S type - 2"to 3"
- Density: up to 2500kg/m3
- Temperature: - 50 ~ 250 deg. C
- Output: 4-20 mA and Pulse/Frequency; Optional: HART or Modbus RS485
- Mounting: Direct or Remote Mount
- Provides best mass flow, density and temperature measurement and also calculate volume flow, total flow and fluid composition in real time.
- Robust, no moving parts for long life
- Custom flow connectors& installation lengths
- Excellent repeatability (±0.05%of flow rate)
- Optional Net Oil functionality
- Certificates : NABL/Weights and Measures Certificates and NIST Traceable NTEP certificates for custody transfer
- Suitable for the most complex and challenging environment for liquid, gas and slurry applications.
